T5720 || Steamflex™ Delivery
Steam delivery hose
Description
Description

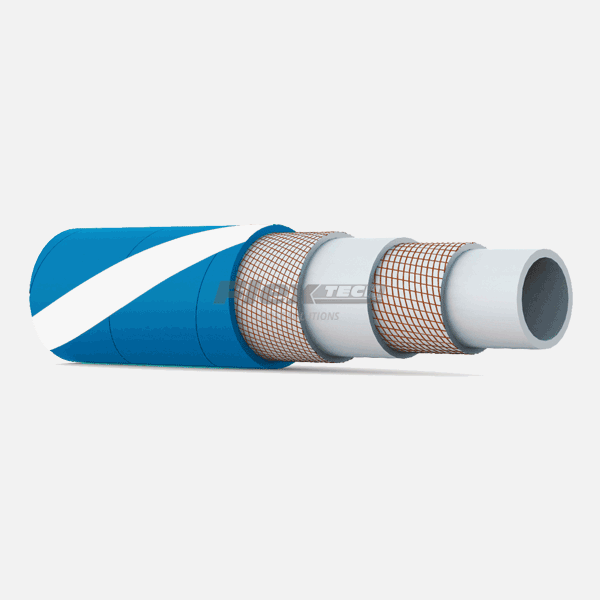

The ultimate washdown hose. This is an FDA washdown delivery hose for potable hot water mixed with steam and detergents. T5720 is constructed from a white, smooth, food quality EPDM rubber compound liner which is reinforced with high strength synthetic plies and covered with a blue, smooth, cloth impression EPDM rubber compound that is abrasion and weather resistant.
Temperature range: -40°c to 164°c
Hot Water: 95°c
Steam: 164°c
| Size | ID (mm) | OD (mm) | Wall (mm) | Bend Radius (mm) | WP (bar) | BP (bar) | Weight (kg/m) | Product Code |
|---|---|---|---|---|---|---|---|---|
| 3/8" | 10 | 20 | 5.0 | 60 | 7/20 | 21/70 | 300 | T5720-010 |
| 1/2" | 13 | 23 | 5.0 | 91 | 7/20 | 21/70 | 370 | T5720-013 |
| 5/8" | 16 | 26 | 5.0 | 112 | 7/20 | 21/70 | 430 | T5720-016 |
| 3/4" | 19 | 31 | 6.0 | 133 | 7/20 | 21/70 | 580 | T5720-019 |
| 1" | 25 | 37 | 6.0 | 175 | 7/20 | 21/70 | 750 | T5720-025 |
| 1 1/4" | 32 | 48 | 8.0 | 210 | 7/20 | 21/70 | 1160 | T5720-032 |
| 1 1/2" | 38 | 52 | 7.0 | 260 | 7/20 | 21/70 | 1470 | T5720-038 |
| 2" | 51 | 66 | 7.5 | 380 | 7/20 | 21/70 | 2000 | T5720-051 |
